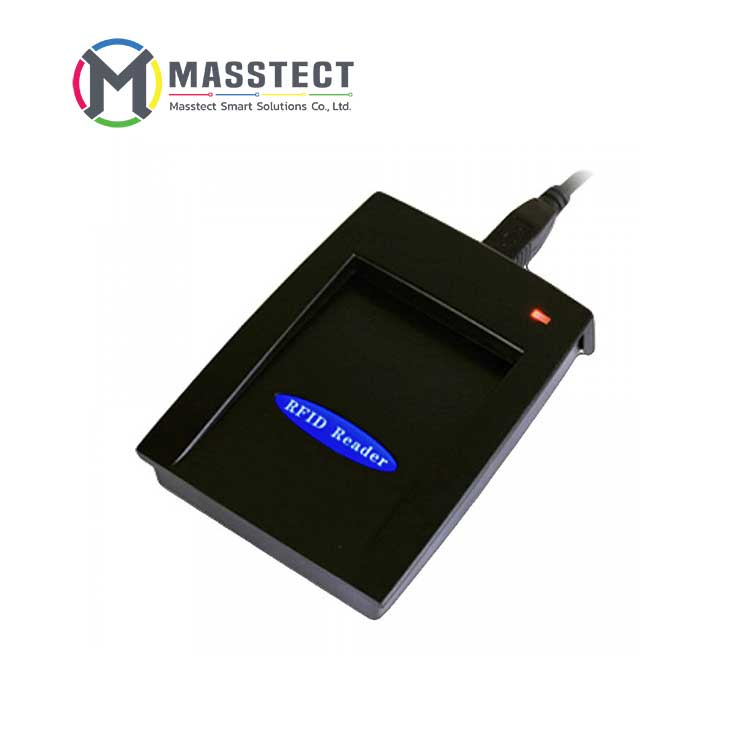

RFID READER SL500L 13.56MHZ

SL500L-USB Reader’s Product Description

Being developed based on NXP RFID technology, SL500 family desktop reader/writer includes SL500L. It supports ISO14443A protocol. Free SDK is provided when customer orders SL500 family desktop reader/writer, which helps an engineer to programme its own applications. The package is composed of PC_DEMO software, WinAPI and prototype description, USB driver, sample source code in C#, VC, BC, VB, PB and DELPHI.

Feature Summary
Name SL500L HF Reader&Write
Dimension 110x80x26mm
Standard ISO14443A
Support FM11RF08, MIFARE Ultralight®, NTAG203, Ultralight C, MIFARE Mini, MIFARE Classic® 1K, MIFARE Classic® 4K
Frequency 13.56MHz
Power Supply
4.5 ~ 5.5VDC Operating
Consumed Current 150mA
Operating Distance 50–70mm
Interface RS232;USB
Status Indication 1pcs LED;1pcd buzzer
Operating Temperature -20℃ ~ +50℃
Store Temperature -25℃ ~ +60℃
Systems Windows 98 \ 2000 \ XP \ NT \ ME \ Vista
Weight 100g
